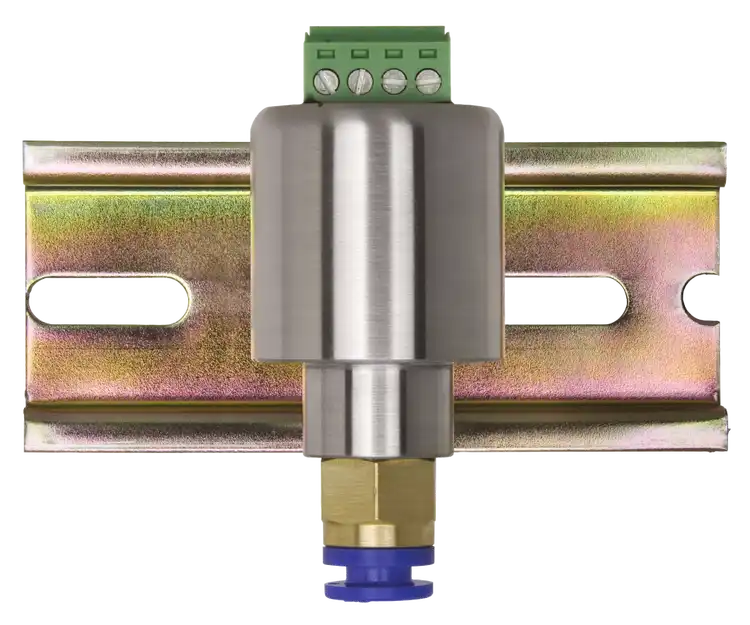

JUMO MIDAS DR
Description
This pressure transmitter is the plant control cabinet variant of the basic JUMO MIDAS product. It acquires the relative pressure of liquid as well as gaseous media and transforms it into an electrical signal.
Short Description
Pressure transmitter for control cabinet mounting
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NTk2NiIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiSW5wdXQiLCJ2YWx1ZSI6IjDCoHRvwqAxNsKgYmFyIHJlbGF0aXZlIHByZXNzdXJlIiwic29ydE5vIjowfSx7Im5hbWUiOiJNZWRpdW0gdGVtcGVyYXR1cmUiLCJ2YWx1ZSI6Ii0xNSB0byArNjDCoMKwQyIsInNvcnRObyI6MX0seyJuYW1lIjoiQWNjdXJhY3kgKGxpbmVhcml0eSkiLCJ2YWx1ZSI6IjAuNTDCoCUiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6Ik91dHB1dCIsInZhbHVlIjoiNMKgdG/CoDIwwqBtQSB0d28td2lyZTsgMMKgdG/CoDEwwqBWIHRocmVlLXdpcmUiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IlByb2Nlc3MgY29ubmVjdGlvbiIsInZhbHVlIjoiUHVzaC1pbiBmaXR0aW5ncyBmb3IgcGlwZS90dWJlIiwic29ydE5vIjo0fSx7Im5hbWUiOiJNZWFzdXJpbmcgc3lzdGVtIiwidmFsdWUiOiJUaGljayBmaWxtIG9uIGNlcmFtaWMgYm9kaWVzIChwaWV6b3Jlc2lzdGl2ZSkiLCJzb3J0Tm8iOjV9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLXNhbmRnbGFzcyIsImRlc2NyaXB0aW9uIjoiU2ltcGxlIG1vdW50aW5nIHVzaW5nIHRlcm1pbmFsIGJsb2NrIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1jaGlwIiwiZGVzY3JpcHRpb24iOiJDZXJhbWljIHRoaWNrIGZpbG0gc2Vuc29yIChBbDJPMykiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWNhbGN1bGF0b3IiLCJkZXNjcmlwdGlvbiI6IkxvdyBpbnZlc3RtZW50IGNvc3RzIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6Ik1lYXN1cmluZyByYW5nZTogMMKgdG/CoDE2IGJhciByZWxhdGl2ZSIsInNvcnRObyI6MH0seyJ0ZXh0IjoiRWxhc3RvbWVyIHNlYWwiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IkNvbXBhY3QgZGVzaWduIHR5cGUiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-sandglass
Description
Simple mounting using terminal block
Icon
icon-chip
Description
Ceramic thick film sensor (Al2O3)
Icon
icon-calculator
Description
Low investment costs
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=5966
Input
0 to 16 bar relative pressure
Medium temperature
-15 to +60 °C
Accuracy (linearity)
0.50 %
Output
4 to 20 mA two-wire; 0 to 10 V three-wire
Process connection
Push-in fittings for pipe/tube
Measuring system
Thick film on ceramic bodies (piezoresistive)
