ps-1
Overview
title
Produkt Details
SKU
404740
Name

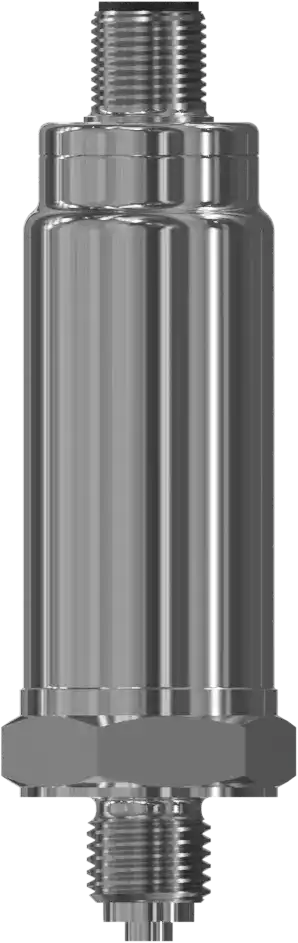

JUMO TAROS H48 Ex
Description
As a high-pressure transmitter, the JUMO TAROS H48 Ex offers precise pressure measurement with measuring ranges up to 1000 bar and enables test pressures greater than 1050 bar. Its wide temperature range, reliable 4 to 20 mA output signal, versatile process connections, and comprehensive approvals make it an indispensable instrument for market requirements. In addition, the device scores points with its robust construction, long life cycle, high degree of accuracy, and a zero-point correction.
Short Description
High pressure sensor for use in Ex areas
Price
€382.26
Availability
In Stock
Images
State
NEW
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTM5MzIwNSIsImJlbmVmaXRzIjpbeyJ0ZXh0IjoiQ29zdCBzYXZpbmdzIGFuZCBlbmVyZ3kgY29uc2VydmF0aW9uIHRocm91Z2ggcHJvY2VzcyBvcHRpbWl6YXRpb24iLCJzb3J0Tm8iOjB9LHsidGV4dCI6IlNpbXBsaWZpZWQgY29tbWlzc2lvbmluZyBhbmQgbWFpbnRlbmFuY2UiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IlJlZHVjZWQgY29zdHMgdGhyb3VnaCByb2J1c3QsIGR1cmFibGUgY29uc3RydWN0aW9uIiwic29ydE5vIjoyfSx7InRleHQiOiJSZWR1Y2VkIGludmVudG9yeSBkdWUgdG8gYSB3aWRlciBhcHBsaWNhdGlvbiByYW5nZSIsInNvcnRObyI6M30seyJ0ZXh0IjoiSGlnaCBkZWdyZWUgb2YgcHJvY2VzcyByZWxpYWJpbGl0eSB0aHJvdWdoIHByZWNpc2UgbWVhc3VyZW1lbnRzIGFuZCB6ZXJvLXBvaW50IGNvcnJlY3Rpb24gaW4gdGhlIHNlbnNvciIsInNvcnRObyI6NH0seyJ0ZXh0IjoiUmVkdWNlZCBxdWFsaWZpY2F0aW9uIGFuZCBjZXJ0aWZpY2F0aW9uIHJlcXVpcmVtZW50cyB0aHJvdWdoIG51bWVyb3VzIGFwcHJvdmFscyIsInNvcnRObyI6NX1dLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJQcmVzc3VyZSIsInZhbHVlIjoiMTAwIHRvIDEwMDAgYmFyIiwic29ydE5vIjowfSx7Im5hbWUiOiJQcm9jZXNzIHRlbXBlcmF0dXJlIiwidmFsdWUiOiItNDAgdG8gKzg1IMKwQyIsInNvcnRObyI6MX0seyJuYW1lIjoiT3V0cHV0IHNpZ25hbCIsInZhbHVlIjoiNCB0byAyMCBtQSIsInNvcnRObyI6Mn0seyJuYW1lIjoiUHJvY2VzcyBjb25uZWN0aW9ucyIsInZhbHVlIjoiRyAxLzQsIEcgMS8yLCAxLzQgTlBULCAgMS8yIE5QVCIsInNvcnRObyI6M30seyJuYW1lIjoiRWxlY3RyaWNhbCBjb25uZWN0aW9ucyIsInZhbHVlIjoiTTEyIMOXIDEsIGxpbmUgc29ja2V0Iiwic29ydE5vIjo0fSx7Im5hbWUiOiJBY2N1cmFjeSIsInZhbHVlIjoiMC4yICUgTVNQIGF0IDIwIMKwQyIsInNvcnRObyI6NX0seyJuYW1lIjoiUHJvdGVjdGlvbiB0eXBlcyIsInZhbHVlIjoiSVA2NS9JUDY3Iiwic29ydE5vIjo2fSx7Im5hbWUiOiJWb2x0YWdlIHN1cHBseSIsInZhbHVlIjoiREMgMjQgViIsInNvcnRObyI6N30seyJuYW1lIjoiU3BlY2lhbCBmZWF0dXJlcyIsInZhbHVlIjoiWmVyby1wb2ludCBhZGp1c3RtZW50IHdpdGhvdXQgc3BlY2lhbCBzb2Z0d2FyZSBkaXJlY3RseSBpbiB0aGUgc2Vuc29yIiwic29ydE5vIjo4fSx7Im5hbWUiOiJBcHByb3ZhbHMiLCJ2YWx1ZSI6IkROViwgVUwsIFVLQ0EsIENFLCBBVEVYLCBJRUNFWCwgSDIgcmVhZHkiLCJzb3J0Tm8iOjl9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWNoZWNrIiwiZGVzY3JpcHRpb24iOiJIaWdoIGRlZ3JlZSBvZiBhY2N1cmFjeSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tcmVkbyIsImRlc2NyaXB0aW9uIjoiWmVybyBwb2ludCBjb3JyZWN0aW9uIGluIHRoZSBzZW5zb3IiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXNlY3RvcnMiLCJkZXNjcmlwdGlvbiI6IlJlbGlhYmxlIGluZHVzdHJpYWwgdmVyc2lvbiIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJNZWFzdXJpbmcgcmFuZ2VzOiB1cCB0byAxMDAwIGJhciIsInNvcnRObyI6MH0seyJ0ZXh0IjoiUHJvY2VzcyB0ZW1wZXJhdHVyZTogLTQwIHRvICs4NSDCsEMiLCJzb3J0Tm8iOjF9LHsidGV4dCI6Ilplcm8tcG9pbnQgY29ycmVjdGlvbiBmb3IgaGlnaCBwcmVjaXNpb24iLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-check
Description
High degree of accuracy
Icon
icon-redo
Description
Zero point correction in the sensor
Icon
icon-sectors
Description
Reliable industrial version
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=1393205
Pressure
100 to 1000 bar
Process temperature
-40 to +85 °C
Output signal
4 to 20 mA
Process connections
G 1/4, G 1/2, 1/4 NPT, 1/2 NPT
Electrical connections
M12 × 1, line socket
Accuracy
0.2 % MSP at 20 °C
Protection types
IP65/IP67
Voltage supply
DC 24 V
Special features
Zero-point adjustment without special software directly in the sensor
Approvals
DNV, UL, UKCA, CE, ATEX, IECEX, H2 ready
title
Customer benefits at a glance
benefit
Cost savings and energy conservation through process optimization
benefit
Simplified commissioning and maintenance
benefit
Reduced costs through robust, durable construction
benefit
Reduced inventory due to a wider application range
benefit
High degree of process reliability through precise measurements and zero-point correction in the sensor
benefit
Reduced qualification and certification requirements through numerous approvals
