JUMO IMAGO F3000
Description

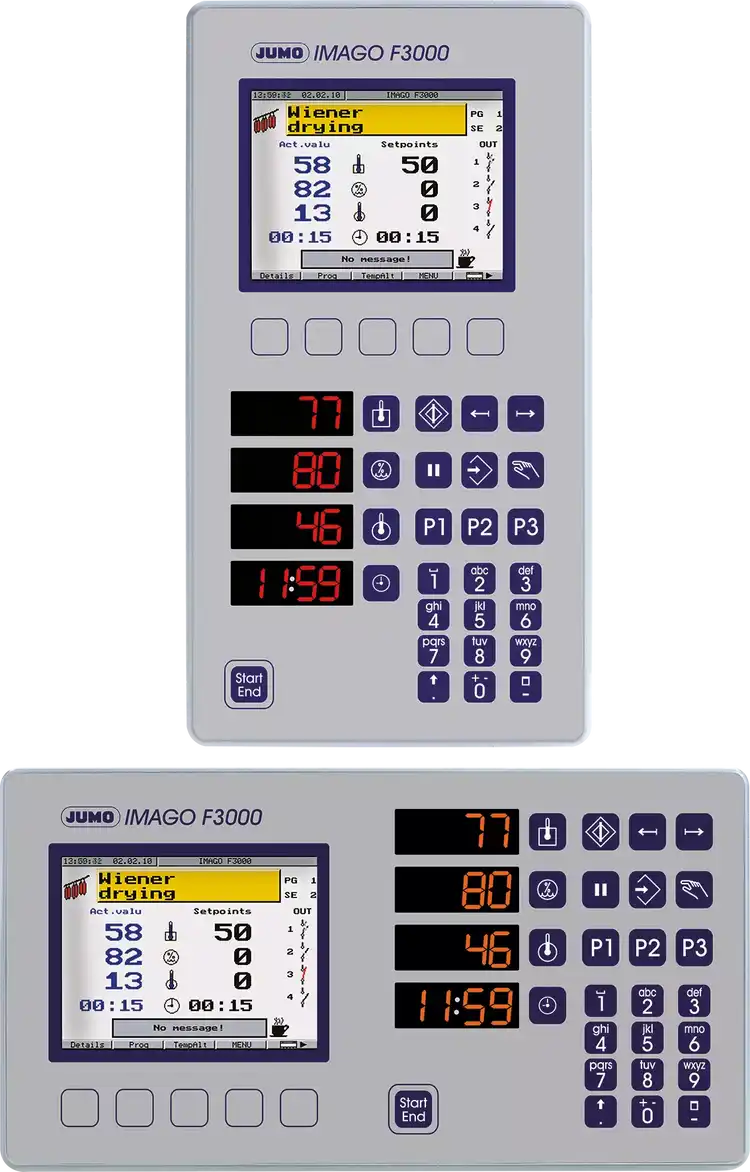

模块化过程控制适用于烹饪、烟熏和空调系统以及所有相关设备（如烟雾发生器、催化剂等）的控制和调节。它有纵向和横向两种尺寸型式。
Short Description
肉加工行业的过程控制
Price
€0.00
Availability
In Stock
Images
State
ARCHIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MzE0MSIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoi5o6n5Yi26YCa6YGT5pWwIiwidmFsdWUiOiI0IOS4queLrOeri+S4lOeUqOaIt+WPr+mFjee9rueahOaOp+WItumAmumBkyIsInNvcnRObyI6MH0seyJuYW1lIjoi5o6n5Yi25Zmo57uT5p6EIiwidmFsdWUiOiJQOyBJOyBQRDsgUEk7IFBJRCDvvIg057uE5o6n5Yi25Y+C5pWw5Y+v6Ieq55Sx5YiG6YWN57uZ6YCa6YGT77yJIiwic29ydE5vIjoxfSx7Im5hbWUiOiLmmL7npLoiLCJ2YWx1ZSI6IjXoi7Hlr7hURlTlvanlsY/vvIgzMjDDlzQyMOWDj+e0oO+8jDI36Imy77yJ77yb5o+Q5L6b6Iux6K+t44CB5b636K+t44CB5rOV6K+t5ZKM5YW25LuW6K+t6KiA55qE57qv5paH5pys5pi+56S677yb54m55a6a6L+H56iL55qE5paH5pys5ZKM5bGP5bmV5Y+v5Y2V54us6YWN572u77yb5p2h5b2i5Zu+5pi+56S677yb6aKd5aSW55qEIDQg5L2NIDcg5q615pi+56S65Zmo77yI57qi6Imy77yJ77yM55So5LqO5pi+56S66YeN6KaB55qE6L+H56iL5YC8Iiwic29ydE5vIjoyfSx7Im5hbWUiOiLmjqXlj6Mv5Y2P6K6uIiwidmFsdWUiOiJSUyA0MjIvNDg1IChNb2RidXMp77ybUFJPRklCVVMgRFDvvJvorr7nva7nlYzpnaIiLCJzb3J0Tm8iOjN9LHsibmFtZSI6Iueoi+W6j+aOp+WItuWZqCIsInZhbHVlIjoi56iL5bqP5Yqf6IO977yIOTkg5Liq56iL5bqP77yM5q+P5Liq56iL5bqP5pyA5aSaIDk5IOaute+8ie+8m+S7peWPiiA5OSDkuKrlj6/nvJbnqIvnmoTov4fnqIvmraXpqqQiLCJzb3J0Tm8iOjR9LHsibmFtZSI6Iua1i+mHj+i+k+WFpSIsInZhbHVlIjoi5aSa6L6+IDgg5Liq55So5oi35Y+v6YWN572u55qE5qih5ouf6L6T5YWl55So5LqO77yaIFJURCDmuKnluqbmjqLlpLTvvJvng63nlLXlgbbvvJvnlLXmtYEgMCg0KSDoh7MgMjAgbUHvvJvnlLXljosgMCgyKSDoh7MgMTAgViIsInNvcnRObyI6NX0seyJuYW1lIjoi5L+d5oqk57G75Z6LIiwidmFsdWUiOiLmraPpnaJJUDY377yb5ZCO6YOoIElQMjAiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IueJueiJsuWKn+iDvSIsInZhbHVlIjoi6KGM5Lia54m55a6a5Yqf6IO977ya5qC45b+D5byA5YWz44CB54Of6Zu+5Y+R55Sf5Zmo44CB6aOO5omH5o6n5Yi244CB5rm/5bqm5o6i5aS06L6T5YWlMOiHszEgVuOAgUblgLzorqHnrpfjgIHmqKHlnZfljJbnu5PmnoTku6Xlj4rlj6/ljZXni6zmlLnoo4XnmoTmj5Lku7bljaHvvJvmmJPkuo7kvb/nlKjnmoRQQ+iuvue9rueoi+W6j++8m+WFt+acieivhOS7t+i9r+S7tueahOiusOW9leWKn+iDve+8m+ehruWumuaOp+WItuWZqOWPguaVsOeahOiHquWKqOiwg+iwkOeoi+W6j++8m+WPr+e8lueoi+aTjeS9nOe6p++8m+aVsOWtpuWSjOmAu+i+keWHveaVsO+8m+eUqOS6juW3peWOguWPr+inhuWMlueahOWPr+e8lueoi+WKn+iDvemUruWSjOWPr+WNleeLrOmFjee9rueahOi/h+eoi+Wxj+W5lSIsInNvcnRObyI6N30seyJuYW1lIjoi6L+e5o6lIiwidmFsdWUiOiLpgJrov4fog4zpnaLlj6/mj5Lmi5Tnq6/lrZAiLCJzb3J0Tm8iOjh9LHsibmFtZSI6IueUteWOi+S+m+W6lCIsInZhbHVlIjoiQUMgMTEwIOiHsyAyNDAgViArMTAvLTE1ICXvvIw0OCDoh7MgNjMgSHrvvJvkuqTmtYEv55u05rWBIDIwIOiHsyAzMCBW77yMNDgg6IezIDYzIEh6Iiwic29ydE5vIjo5fSx7Im5hbWUiOiLovpPlh7oiLCJ2YWx1ZSI6IuacgOWkmjM15Liq57un55S15Zmo77yb5pyA5aSaNCDkuKrmqKHmi5/ovpPlh7oiLCJzb3J0Tm8iOjEwfSx7Im5hbWUiOiLmoLzlvI8iLCJ2YWx1ZSI6IjMwNyDDlyAxNjUgbW3vvIjlnoLnm7TmiJbmsLTlubPvvInvvIzlronoo4Xmt7HluqYgMTA3LjYgbW0iLCJzb3J0Tm8iOjExfSx7Im5hbWUiOiLorqTor4EiLCJ2YWx1ZSI6ImNVTHVzIiwic29ydE5vIjoxMn0seyJuYW1lIjoi5a6J6KOFIiwidmFsdWUiOiLnlKjkuo7pnaLmnb/lronoo4XnmoTloZHmlpnlpJblo7MiLCJzb3J0Tm8iOjEzfSx7Im5hbWUiOiLmjqfliLblmajnsbvlnosiLCJ2YWx1ZSI6IuS6jOaAgeaOp+WItuWZqO+8m+S4ieaAgeaOp+WItuWZqO+8m+S4ieatpeaOp+WItuWZqO+8m+i/nue7reaOp+WItuWZqO+8m+W4pumbhuaIkOS9jee9ruaOp+WItuWZqOeahOi/nue7reaOp+WItuWZqCIsInNvcnRObyI6MTR9LHsibmFtZSI6IuitpuaKpSIsInZhbHVlIjoiOOS4quaegemZkOWAvOebkeaOp+WKn+iDve+8jOavj+S4qumDveaciTjkuKrlj6/pgInmi6nnmoTmiqXorablip/og73vvIzluKblrprml7blmajlkoznoa7orqTlip/og70iLCJzb3J0Tm8iOjE1fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi1leHBhbmQiLCJkZXNjcmlwdGlvbiI6Iui+k+WFpS/ovpPlh7rlj6/ku6XmqKHlnZfljJbmianlsZUiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWFuc2NobHVlc3NlIiwiZGVzY3JpcHRpb24iOiI45Liq5rWL6YeP6L6T5YWlIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1jaGVjayIsImRlc2NyaXB0aW9uIjoi6Ieq5Yqo6LCD6LCQIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6IjTkuKrmjqfliLbpgJrpgZMiLCJzb3J0Tm8iOjB9LHsidGV4dCI6IjVcIuW9qeiJsuWxjyIsInNvcnRObyI6MX0seyJ0ZXh0Ijoi5bC65a+4MzE1IHggMTcxLzE3MSB4IDMxNSDmr6vnsbMiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-expand
Description
输入/输出可以模块化扩展
Icon
icon-anschluesse
Description
8个测量输入
Icon
icon-check
Description
自动调谐
title
技术规格
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=3141
控制通道数
4 个独立且用户可配置的控制通道
控制器结构
P; I; PD; PI; PID （4组控制参数可自由分配给通道）
显示
5英寸TFT彩屏（320×420像素，27色）；提供英语、德语、法语和其他语言的纯文本显示；特定过程的文本和屏幕可单独配置；条形图显示；额外的 4 位 7 段显示器（红色），用于显示重要的过程值
接口/协议
RS 422/485 (Modbus)；PROFIBUS DP；设置界面
程序控制器
程序功能（99 个程序，每个程序最多 99 段）；以及 99 个可编程的过程步骤
测量输入
多达 8 个用户可配置的模拟输入用于： RTD 温度探头；热电偶；电流 0(4) 至 20 mA；电压 0(2) 至 10 V
保护类型
正面IP67；后部 IP20
特色功能
行业特定功能：核心开关、烟雾发生器、风扇控制、湿度探头输入0至1 V、F值计算、模块化结构以及可单独改装的插件卡；易于使用的PC设置程序；具有评价软件的记录功能；确定控制器参数的自动调谐程序；可编程操作级；数学和逻辑函数；用于工厂可视化的可编程功能键和可单独配置的过程屏幕
连接
通过背面可插拔端子
电压供应
AC 110 至 240 V +10/-15 %，48 至 63 Hz；交流/直流 20 至 30 V，48 至 63 Hz
输出
最多35个继电器；最多4 个模拟输出
格式
307 × 165 mm（垂直或水平），安装深度 107.6 mm
认证
cULus
安装
用于面板安装的塑料外壳
控制器类型
二态控制器；三态控制器；三步控制器；连续控制器；带集成位置控制器的连续控制器
警报
8个极限值监控功能，每个都有8个可选择的报警功能，带定时器和确认功能
